Description

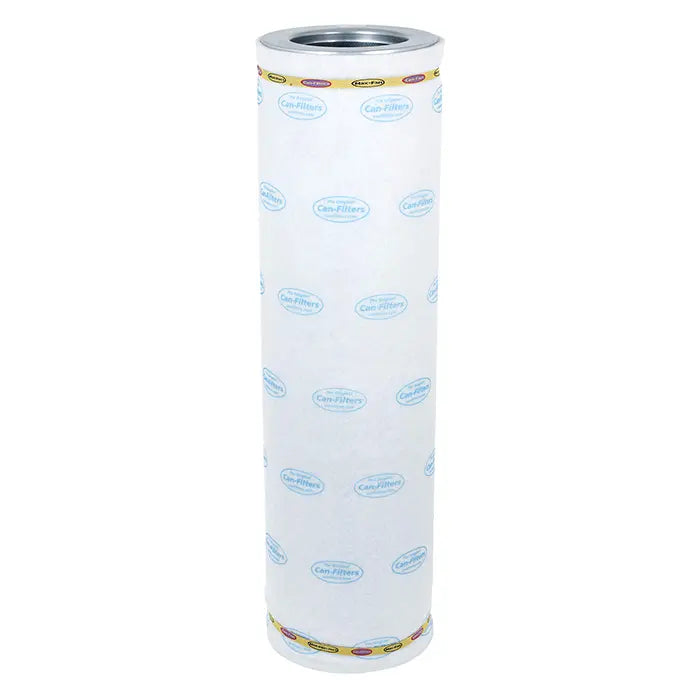

Can-Filter 150 W/O Flange 1260CFM
Each Original Can-Filter uses our thickest granular-carbon packed-bed design to deliver the best performing Can-Filter on the market. Even with the industry’s thickest 2.5in carbon bed, the Can Original maintains minimal pressure drops. This hefty granular carbon bed effectively makes the Can Original a massive sponge, soaking up VOCs and capable of holding massive amounts of contaminant. The Original Can-Filter is designed for the control of VOCs (paint fumes, hydrocarbons, etc.), odors, and other gaseous contaminants. Rated at a conservative 0.1 sec contact time, the Original Can-Filter provides excellent value and confidence.
Features
- Made in North America
- You pick the flange that’s right for you
- Low pressure drop even on smaller sizes
- Granular carbon delivers the cleanest filter available
- 2.5" Carbon bed, thickest in industry
- Flange comes separate to fit a wide range of fans and applications
Specifications
- Max Exhaust CFM: 1260 CFM / 2100 m³h @ 0.1 sec contact time
- Max Recirculating (Scrubbing) CFM: 2520 CFM / 4200 m³h
- Recommended Min Airflow: 630 CFM / 1056 m³/h
- Prefilter: Yes
- Flange: 10″, 12″, 14″
- Dimensions: (with pre-filter)
- Outside Diameter: 42cm / 16.5″
- Height: 150cm / 60″
- Carbon Bed Depth: 6.5cm / 2.56″
- Max Operating Temp: 80ºC
-
Pressure drop at max CFM: 180pa / .75″wg
